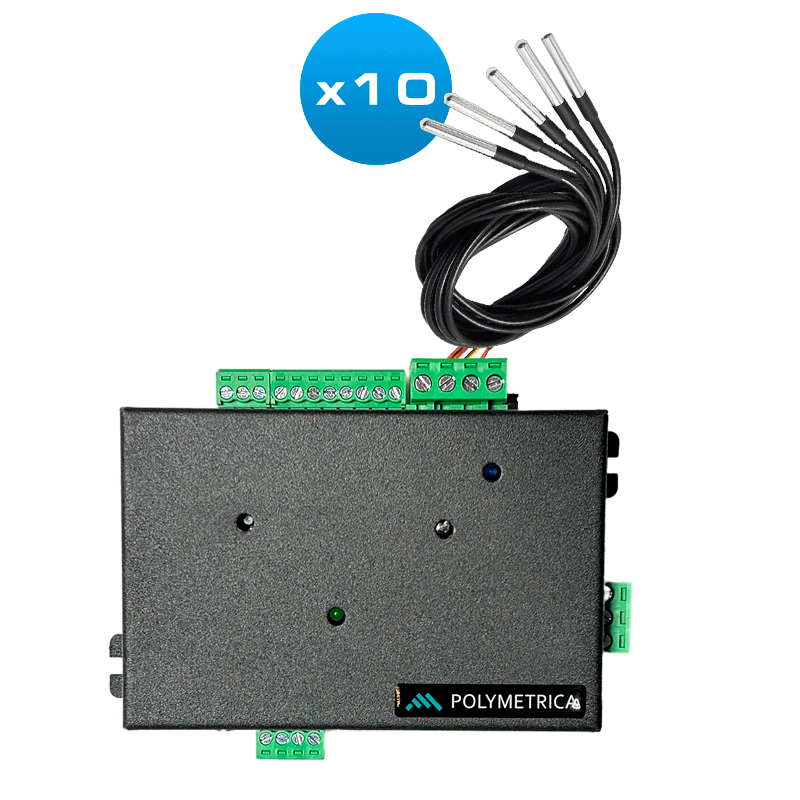

GSM temperature meter with 10 sensors

The device is able to monitor the state of 10 wired temperature sensors. In the event of an alarm of temperature decrease/increase, the device will call your mobile phone via GSM channel or send an SMS. If you need to listen to what is happening in the room, you can order a microphone included with the device.

It can also be used for management. This can be barrier control, automatic gates, lighting, heating devices, water supply and so on, depending on your needs.
The control channel is capable of operating with a current of up to 15A for capacitive loads, which corresponds to 3.3 kW at 220V. For inductive loads, the current should not exceed 7A.

Memory

The device has a memory that is designed to store phone numbers that are followed by a notification (SMS, call) in the event of an alarm. In total, the device can remember up to 6 numbers for notifications. Numbers are stored in EEPROM, they will not disappear from memory when the device is turned off.

The first three numbers are required for SMS accident notification. And if there is a fire or other emergency, the device will try to call numbers from the list 4-6. You can write the same number in both lists. The device can be controlled from any phone number, there is password protection.

Built-in clock

The alarm system includes a real-time clock, which is required for the automatic operation of the device. So, for example, you can use the Timer function to set the boiler or lighting to turn on and off automatically at a given time. For example, if you need to turn on the lighting in the aquarium only at night, the device will easily cope with this task. He will do this daily, weeks, days, months and years.

Temperature sensors

The device supports up to 10 temperature sensors. If the temperature exceeds the set limits, the device will send an alarm SMS or try to call. If the temperature has returned to normal, you will also know about it.

It is possible to control the power channel and monitor the state of the temperature sensors through our server (access is through the site from any smartphone or computer). To do this, it is necessary to specify in the order that the GPRS version of the device is required (the service is included in the price of the device).

Accelerometer

The device has a three-axis shock sensor that can be adjusted to a sensitivity of 0.1 to 10G (free fall acceleration). This sensor is needed in case the protected object is stolen along with the device. It can be a safe, a switch, and so on. The device will read the position of the sensor every 5 minutes and thereby determine the location of the device. Data will be sent via SMS with a link to Google maps.

Built-in battery

If the power suddenly goes out, which happens in the event of an accident or robbery, the device will not get lost and will not stop working thanks to the built-in battery. It will send an alarm SMS that the power has been cut. In autonomous mode, the device can work up to 6-8 hours.

– Warranty period: 36 months.

Optionally, the device is equipped with:

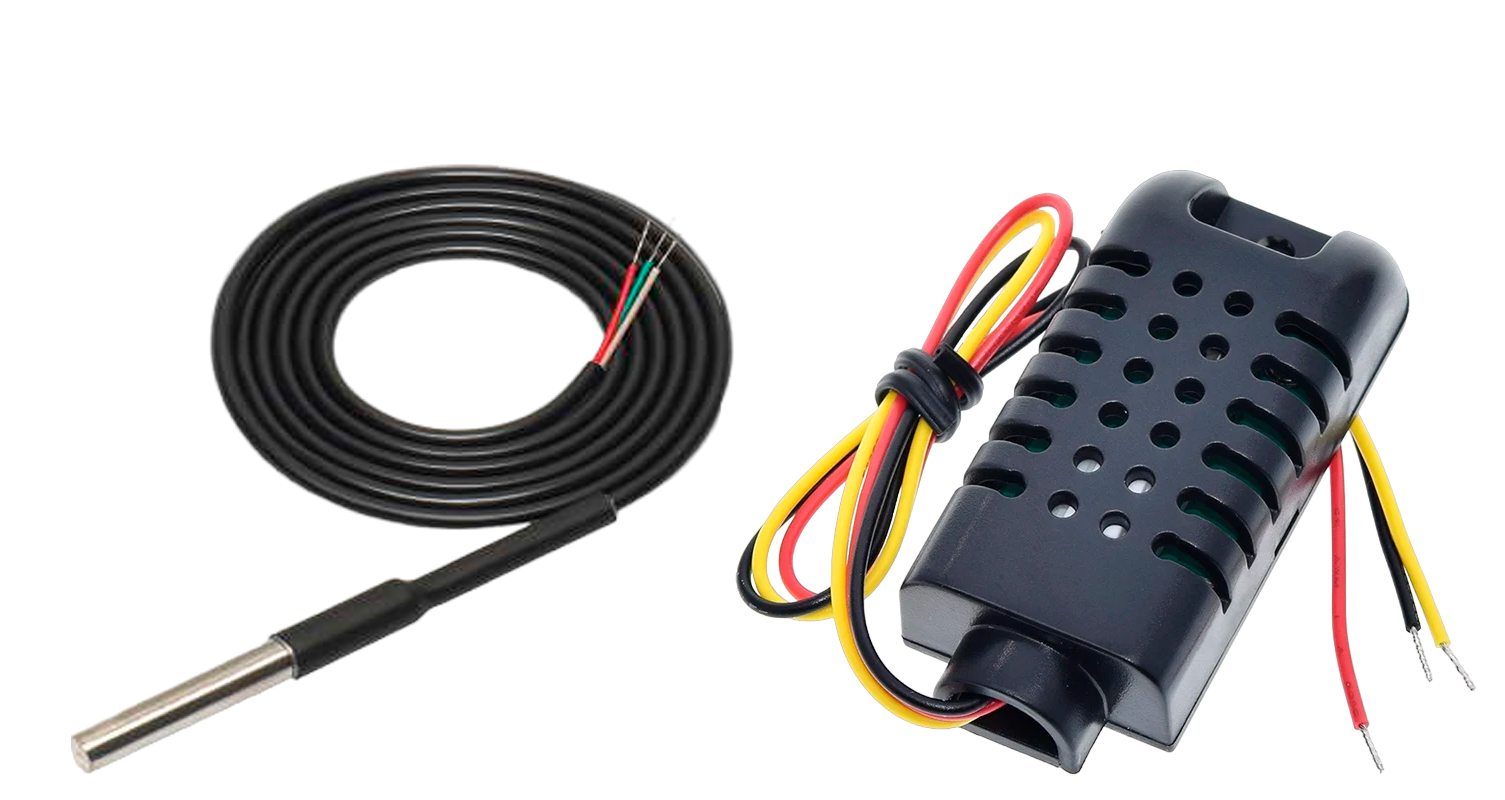

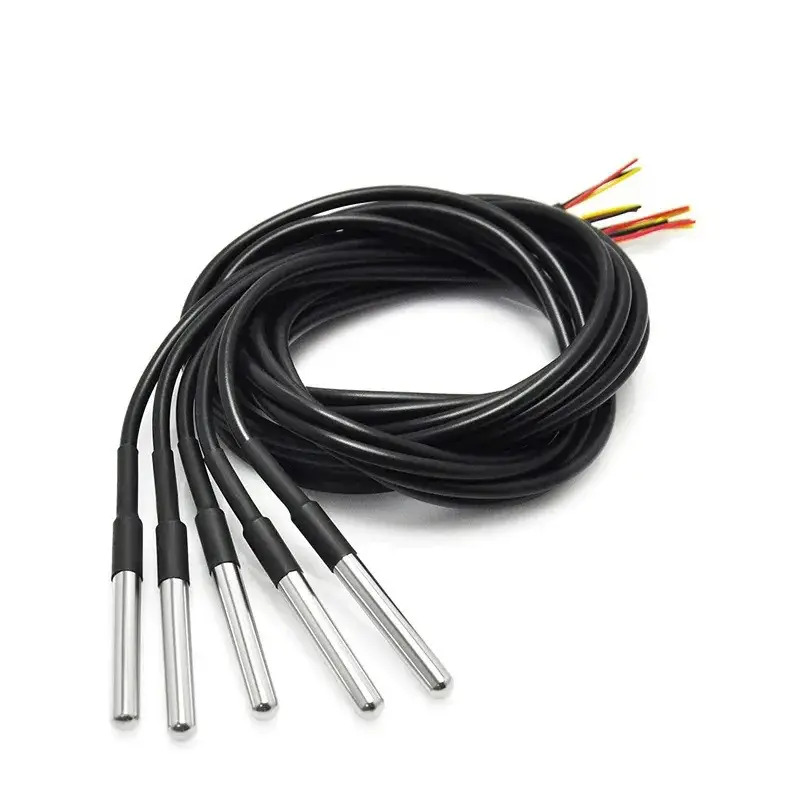

1) up to 10 pieces of remote digital temperature sensors DS18B20 in a sleeve with a cable 1 meter = UAH 145, if it is necessary to extend – each meter + UAH 15

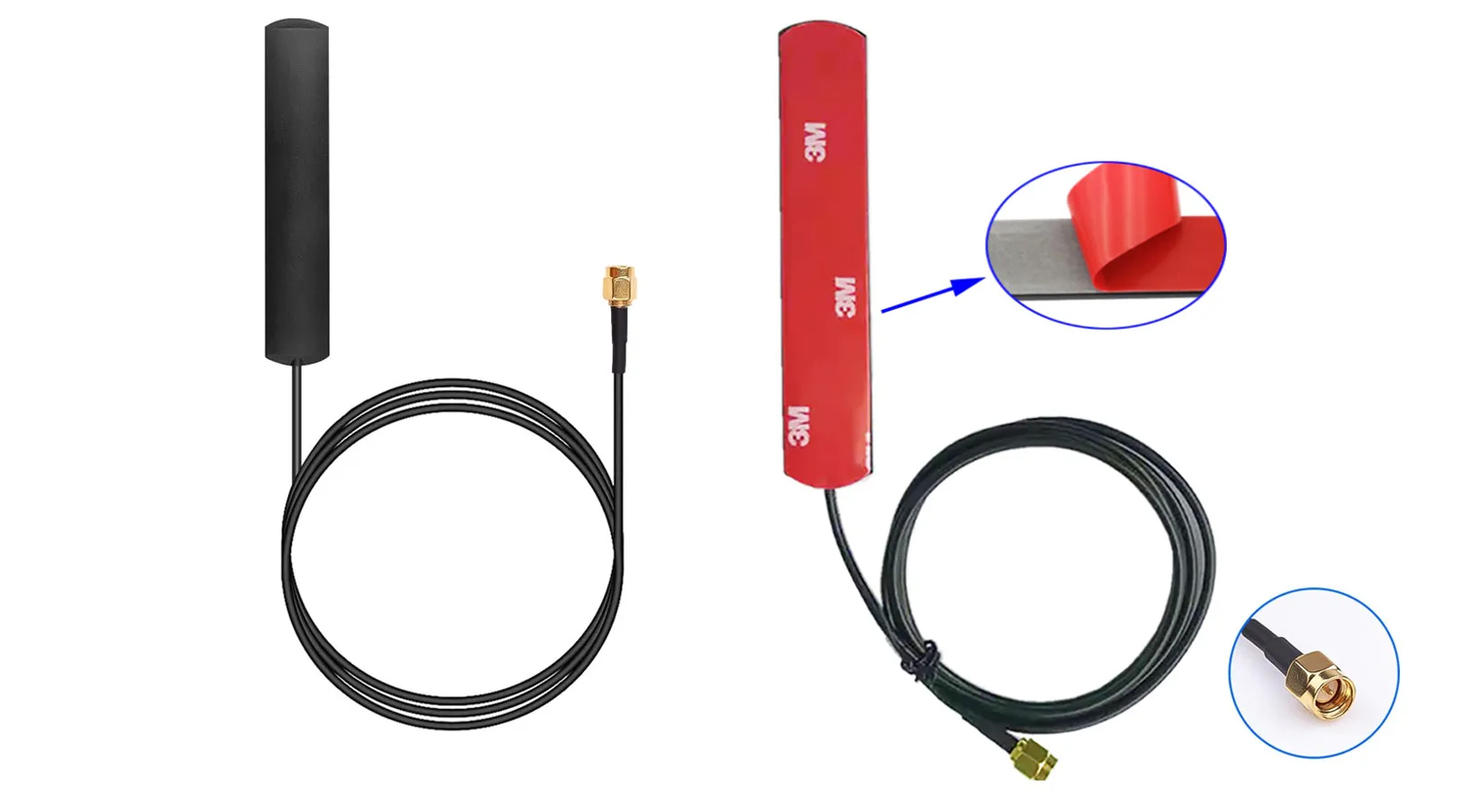

2) a remote antenna with a 3-meter cable = UAH 250
