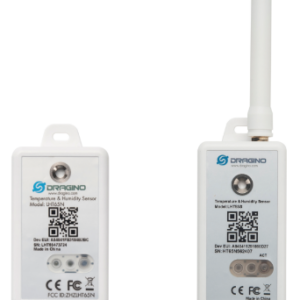

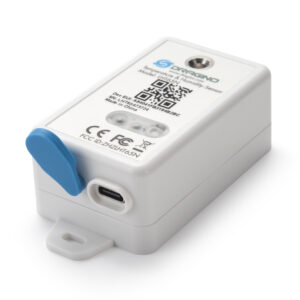

Dragino LHT65S LoRaWAN temperature and humidity sensor

The Dragino LHT65S temperature and humidity sensor is a long-range LoRaWAN sensor. It contains a built-in temperature and humidity sensor and has a connector for connecting an external temperature sensor.

The LHT65S allows users to send data over extremely long distances. It provides ultra wide range spread spectrum communication and high immunity to interference while minimizing current consumption. It is designed for professional wireless sensor networks such as irrigation systems, smart metering, smart cities, building automation, etc.

The LHT65S has a built-in non-rechargeable 2400 mAh battery that can be used for up to 10 years*.

LHT65S is fully compliant with LoRaWAN v1.0.3 class A protocol, it can work with standard LoRaWAN gateway.

LHT65S supports Datalog function. It will record data when there is no network coverage and users can retrieve sensor values ​​later to ensure that no sensor reading is missed.

*Actual battery life depends on data transmission frequency, see battery analyzer section.

Features: Class A LoRaWAN protocol Frequency bands: CN470/EU433/KR920/US915/EU868/AS923/AU915 AT commands to change parameters Remote parameter setting via LoRaWAN Downlink Firmware update via software port Built-in 2400 mAh battery, up to 10 years life* Built-in temperature and humidity sensor Additional sensors Three-color LED for external status indications Data log function Wall mounting

Applications: Wireless alarm and security systems Home and building automation Automated meter reading Industrial monitoring and control Long range irrigation systems, etc.

Built-in temperature sensor:

Resolution: 0.01 °C

Accuracy tolerance: Typically ±0.3 °C

Long-term drift: < 0.02 °C/year

Operating range: -40 ~ 80 °C

Built-in humidity sensor:

Resolution: 0.04% relative humidity

Accuracy tolerance: Type ±3% relative humidity

Long-term drift: < 0.02 °C/year

Operating range: 0 ~ 96% relative humidity

External temperature sensor:

Resolution: 0.0625 °C

Accuracy ±0.5°C from -10°C to +85°C

Accuracy ±2°C from -55°C to +125°C

Operating range: -55 °C ~ 125 °C

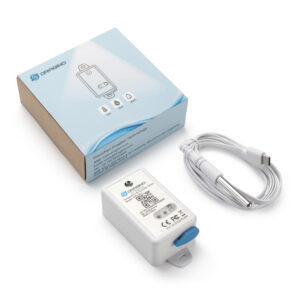

The package includes:

Temperature and humidity sensor LHT65S x 1 Additional external sensor

Model:

LHT65S-XXX XXX : Standard frequency range

AS923 : LoRaWAN AS923 range

AU915 : LoRaWAN range AU915

EU433 : LoRaWAN range EU433

EU868 : LoRaWAN range EU868

KR920 : KR920 LoRaWAN range

US915 : LoRaWAN range US915

IN865 : LoRaWAN range IN865

CN470 : LoRaWAN range CN470.
