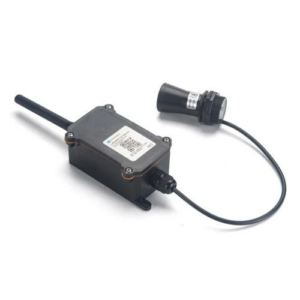

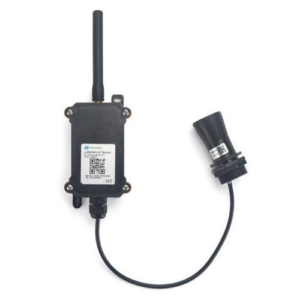

Distance sensor Dragino LDDS75 LoRaWAN

LDDS75 is it LoRaWAN distance sensor for an Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance sensor is a module that uses ultrasonic distance measurement technology, and temperature compensation performed internally to improve data reliability.

The LDDS75 can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking control system, object proximity and presence detection, intelligent garbage can control system, robot obstacle avoidance, automatic control, sanitation, groundwater level monitoring, etc.

He defines the distance between the measurement object and the sensor and uploads the values ​​over a wireless connection to the LoRaWAN IoT server. The LoRa wireless technology used in the LDDS75 allows the device to send data and reach extremely long distances at low data rates. It provides ultra-long range spread-spectrum communication and high immunity to interference while minimizing current consumption. LDDS75 is powered by 4000mA or 8500mA Li-SOCI2 batteries ; Designed for long-term use up to 10 years*. Each LDDS75 pre-downloads a set of unique LoRaWAN registration keys, registers these keys with the local LoRaWAN server, and it automatically connects if there is network coverage upon power-up. * Actual service life depends on network coverage, uplink interval and other factors.

Features:
LoRaWAN 1.0.4, Class A
Extremely low power consumption
Detection of distance using ultrasonic technology
The range of flat objects is 280 mm – 7500 mm
Accuracy: ±(1cm+S*0.3%) (S: distance)
Measuring angle: 40°
Cable length: 25 cm
Temperature compensation
Ranges: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 AT
Commands for changing parameters
The output line is periodically switched on
Downlink to change configuration
IP66 waterproof housing 4000 mAh or 8500 mAh battery for long-term use.

Application:
Horizontal distance measurement
Liquid level measurement
Parking management system
Detecting the proximity and presence of objects Intelligent garbage management system
Obstacle avoidance robot
Automation, sewerage
Control of the bottom water level.
